SMART METERS

Products Code
SINGLE PHASE SMART METER View
THREE PHASE SMART METER View

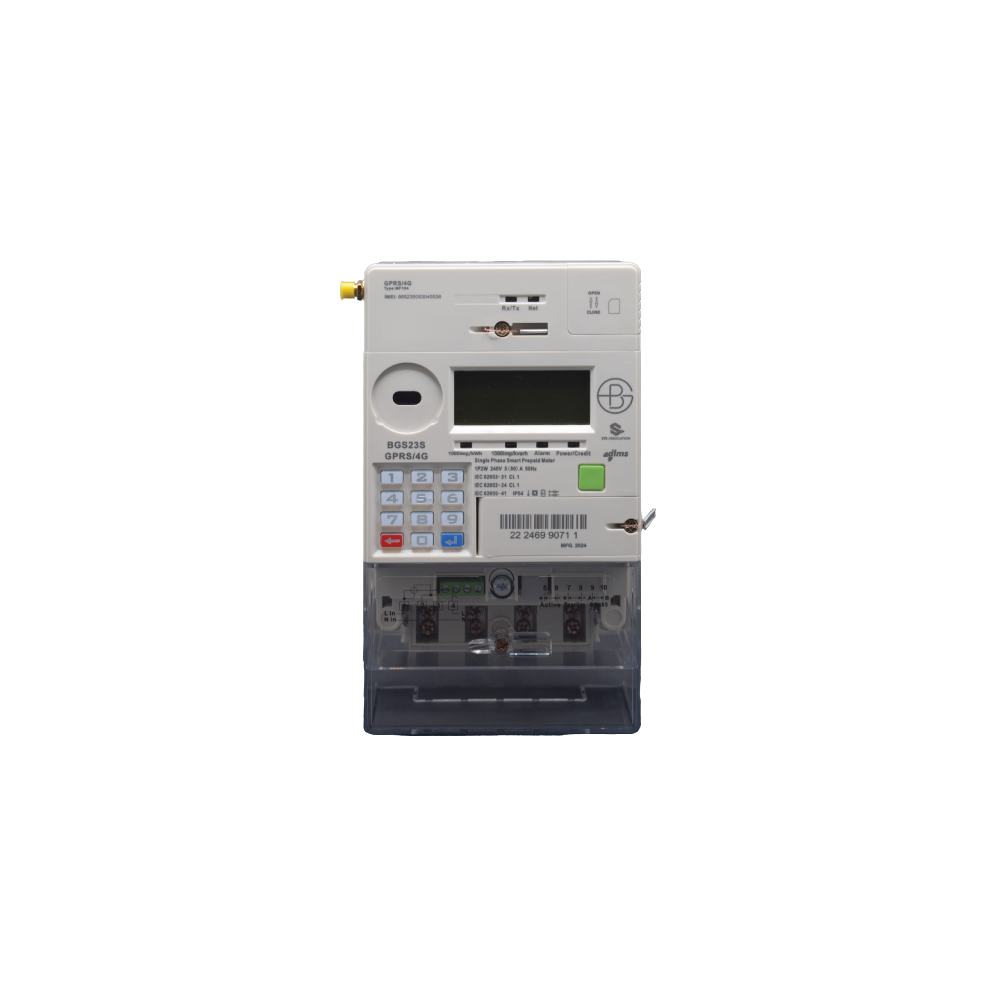

SINGLE PHASE SMART METER


  • Rated voltage: 240V
  • Rated current: 5(80)
  • Starting current: 20MA
  • Frequency: 50/60Hz
  • Operating temperature range: -40°C ~ +80°C
  • IEC 62052-11 IEC 62053-21 IEC 62053-23 IEC 62055-31
  • Optical port RS232
  • GPRS4G
  • IEC 62056/DLMS COSEM
  • Two elements
  • Energy: 0.5 class kWh, 2 class kVarh
  • 8 tariff, 10 daily time spans, 12 day schedules, 12 week schedules, 12 seasons schedules, 100 holidays (configurable)
  • Battery can be replaced, Expected life at least 15 years
  • Prepayment mode: Electricity/Currency
  • Credit warning: It supports three levels of credit warning. The levels threshold is configurable.
  • Emergency credit: The consumer is able to obtain a limited amount of credit as a short-term loan. It is configurable.
